首页欧美晶振 MTRONPTI晶振M6055S026 20.000000|M6055,M6056|MTRONPTI晶振

M6055S026 20.000000|M6055,M6056|MTRONPTI晶振

产品型号：15075363
晶振频率：20MHZ

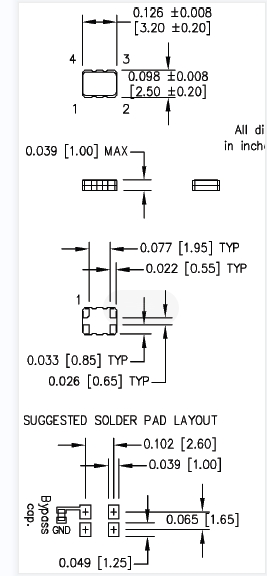

晶振尺寸：3.2*2.5*1.0mm
产品应用： MTRONPTI晶振,型号M6055,M6056,编码M6055S02620.000000,精度3PPM,频率26MHZ,电压3.0V,输出ClippedSinewave,尺寸3225mm,石英贴片晶振,温补石英晶振,有源晶体振荡器,TCXO振荡器,工作温度...

M6055S026 20.000000|M6055,M6056|MTRONPTI晶振,MTRONPTI晶振, 型号M6055,M6056 ,编码M6055S026 20.000000,精度±3PPM,频率26MHZ,电压3.0V,输出Clipped Sinewave,尺寸3225mm,石英贴片晶振,温补石英晶振,有源晶体振荡器,TCXO振荡器,晶振系列,工作温度范围:-40°C-85°C,四脚贴片晶振,小型,轻型,薄型,低损耗,低功耗,低电平是它的特点.3225mm体积贴片晶振适用于摄像头,监控系统,投影仪,智能充电宝,智能电风扇,机器人,无人机.

M6055S026 20.000000|M6055,M6056|MTRONPTI晶振

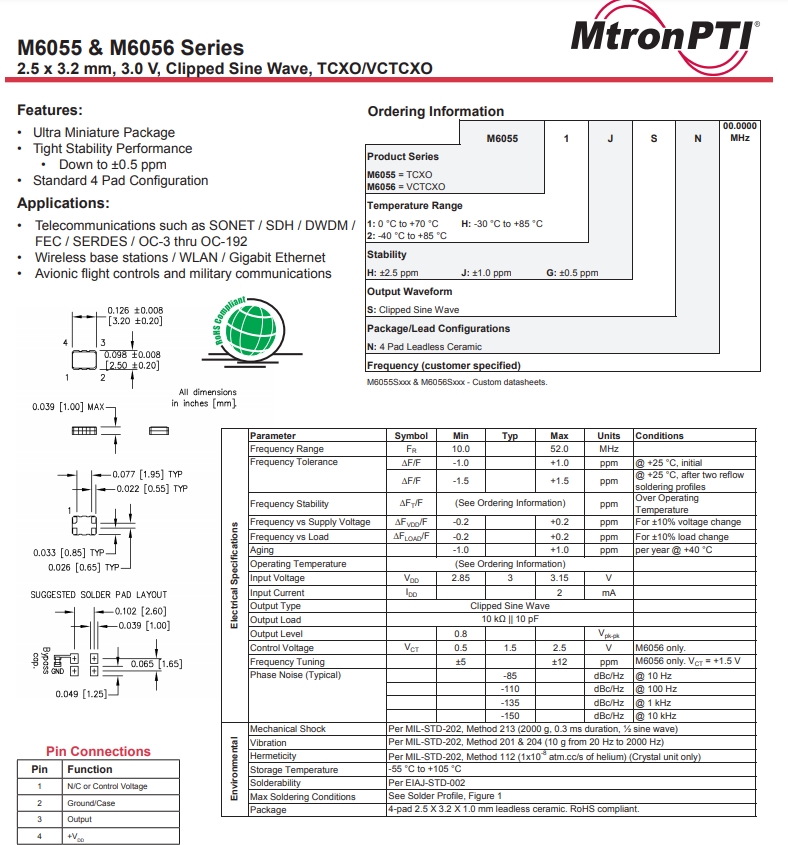

MTRONPTI晶振规格	单位	M6055,M6056	石英晶振基本条件
标准频率	f_nom	20MHZ	标准频率
储存温度	T_stg	-40 °C - +85 °C	裸存
工作温度	T_use	-40°C - +85°C	标准温度
激励功率	DL	300μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±3× 10-6 (标准), (±10× 10-6 ～ ± 100× 10-6 可用)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://www.taiheth.com
频率温度特征	f_tem	±30 × 10-6/25°C	超出标准的规格请联系我们.
输出		Clipped Sinewav	不同负载电容要求,请联系我们.
串联电阻(ESR)	R1	如下表所示	-40°C — +85°C, DL = 100μW
频率老化	f_age	±5 × 10-6 / year Max.	+25°C,第一年

M6055S026 20.000000|M6055,M6056|MTRONPTI晶振

物料编码	型号	类型	精度	频率	尺寸	工作温度范围	电压
M60532JCN 25.000000	泰河电子	TCXO	±1 ppm	25	3.2 X 5.0 mm	-40?C to +85?C	3
M60532JSN 10.000000	M6053 and M6054	TCXO	±1 ppm	10	3.2 X 5.0 mm	-40?C to +85?C	3
M6053S023 32.000000	M6053 and M6054	TCXO	±2.5 ppm	32	3.2 X 5.0 mm	-40?C to +85?C	3.3
M6053S036 50.000000	M6053 and M6054	TCXO	±2 ppm	50	3.2 X 5.0 mm	-40?C to +85?C	3.3
M60552JSN 48.000000	M6055 and M6056	TCXO	±1 ppm	48	2.5 X 2.0 mm	-40?C to +85?C	3
M6055S014 10.000000	M6055 and M6056	TCXO	±2 ppm	10	2.5 X 2.0 mm	-30?C to +75?C	3
M6056HGSN 26.000000	M6055 and M6056	VCTCXO	±0.5 ppm	26	2.5 X 3.2 mm	-30?C to +85?C	3
M2034S021 33.000000	M2030 through M2034	XO	±100 ppm	33	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S065 10.000000	M2030 through M2034	XO	±50 ppm	10	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S066 25.000000	M2030 through M2034	XO	±50 ppm	25	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S068 75.000000	M2030 through M2034	XO	±50 ppm	75	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S069 80.000000	M2030 through M2034	XO	±50 ppm	80	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S079 26.000000	M2030 through M2034	XO	±25 ppm	26	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S087 33.333300	M2030 through M2034	XO	±25 ppm	33.3333	3.2 X 5.0 mm	-10°C to +70°C	3.3
M2034S088 40.000000	M2030 through M2034	XO	±25 ppm	40	3.2 X 5.0 mm	-10°C to +70°C	3.3
M2034S089 24.000000	M2030 through M2034	XO	±100 ppm	24	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S090 25.000000	M2030 through M2034	XO	±50 ppm	25	3.2 X 5.0 mm	-55°C to +95°C	3.3
M2034S091 18.432000	M2030 through M2034	XO	±50 ppm	18.432	3.2 X 5.0 mm	-55°C to +95°C	3.3
M2034S092 24.000000	M2030 through M2034	XO	±50 ppm	24	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S093 28.375000	M2030 through M2034	XO	±50 ppm	28.375	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S094 67.500000	M2030 through M2034	XO	±50 ppm	67.5	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S108 50.000000	M2030 through M2034	XO	±20 ppm	50	3.2 X 5.0 mm	-10°C to +60°C	3.3
M2034S116 33.333300	M2030 through M2034	XO	±25 ppm	33.3333	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S120 98.304000	M2030 through M2034	XO	±50 ppm	98.304	3.2 X 5.0 mm	-55°C to +95°C	3.3
M2034S127 125.000000	M2030 through M2034	XO	±50 ppm	125	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S128 25.000000	M2030 through M2034	XO	±50 ppm	25	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S129 24.000000	M2030 through M2034	XO	±50 ppm	24	3.2 X 5.0 mm	-10°C to +70°C	3.3
M2034S135 48.000000	M2030 through M2034	XO	±50 ppm	48	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2034S136 1.544000	M2030 through M2034	XO	±25 ppm	1.544	3.2 X 5.0 mm	-40°C to +85°C	3.3
M2035S004 40.000000	M2035 through M2037	XO	±20 ppm	40	5.0 x 7.0 mm	-40°C to +85°C	3.3
M2037S019 77.760000	M2035 through M2037	XO	±25 ppm	77.76	5.0 x 7.0 mm	-40°C to +85°C	3.3
