- 产品型号：25438495
- 晶振频率：7.3728MHz
- 晶振尺寸：
- 产品应用： 格耶晶振,欧美晶振,KX-49进口晶振,无源晶振,12.81288晶振,HC-49/U晶振,石英晶体谐振器,二脚插件晶振,11.3*4.9*13.6mm晶振,频率7.3728MHz,负载30pF,频率容差30ppm,工作温度-20~70°C,无铅环保晶振,高品质晶振,高可靠性...
-
12.81288|7.3728MHz|30pF|格耶插件晶振
12.81288|7.3728MHz|30pF|格耶插件晶振,格耶晶振,欧美晶振,KX-49进口晶振,无源晶振,12.81288晶振,HC-49/U晶振,石英晶体谐振器,二脚插件晶振,11.3*4.9*13.6mm晶振,频率7.3728MHz,负载30pF,频率容差30ppm,工作温度-20~70°C,无铅环保晶振,高品质晶振,高可靠性晶振,家用电视机顶盒晶振,移动电话晶振,键盘鼠标晶振,电子体重秤晶振.
12.81288|7.3728MHz|30pF|格耶插件晶振规格表
| part no. | 12.81288 |
| model | KX-49 |
| frequency range | 7.3728 MHz |
|
mode |
fundamental |
| operating temperature | -20~+70℃ |
| frequency tolerance at +25°C | 土30 ppm |
| temperature tolerance |
土50 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 30 pF |
| shunt capacitance C0 max. | 7 pF |
| series resistance R1 (ESR) max. | 200 Ohm |
| aging at +25°℃ (first year) max. | ±5 ppm |
| drive level | 0.5 ~ 2 mW typ |
.jpg)

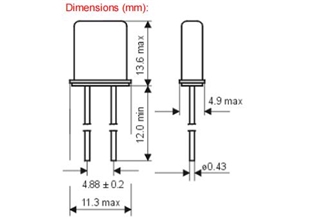

12.81288|7.3728MHz|30pF|格耶插件晶振尺寸图
