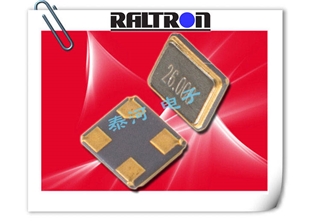

- 产品型号：17471001
- 晶振频率：37.4 MHz
- 晶振尺寸：1.6*1.2*0.65mm
- 产品应用： R1612-37.400-16-F-1010-TR-NS2,R1612贴片晶振,16pF晶振,该型号依托R1612超微型封装设计,在PCB板上可节省近一半布局空间,尤其适配智能穿戴设备,微型传感器,TWS耳机充电盒主板等对尺寸要求极致的高密度集成产品.
-
R1612-37.400-16-F-1010-TR-NS2,R1612贴片晶振,16pF晶振
R1612-37.400-16-F-1010-TR-NS2,R1612贴片晶振,16pF晶振
| 原厂型号 Originalmodel： | R1612-37.400-16-F-1010-TR-NS2 | 品牌brand： | Raltron拉隆晶振 |
| 品牌brand： | Raltron晶振 | ESR（等效串联电阻）Resistance) | 80 Ohms |
| 型号名称 Modelname： | R1612 | 温度OperatingTemperature | -30°C ~ 60°C |
| Type系列： | MHz Crystal | 脚位Termination： | 4pad |
| 频率 frequency： | 37.4 MHz | 封装类型PackageType： | 4-SMD |
| FrequencyStability频率稳定度 | ±10ppm | 高度PackageHeight： | 0.35mm |
| frequencytolerance频率容差 | ±10ppm | 最小包装数MPQ： | 3000 |
| Loadcapacitance 负载电容 | 16pF | 包装Packaging： | TapeandReel |
| Size/Dimension尺寸 | 1.60mm x 1.25mm | 安装方式MountingStyle： | SurfaceMount |
欢迎直接联系代理
深圳市泰河盛电子有限公司
代理:EPSON,KDS,CITIZEN,SEIKO
电话: 0755-27872782
手机: 13824306246
邮箱: taiheth@163.com
Q Q: 794113422
网址：http://www.taiheth.com
| RH100-12.000-20-3030-EXT-TR | Raltron拉隆晶振 | RH100 | 12 MHz | ±30ppm | ±30ppm |
| RH100-12.000-18-2020-TR | Raltron拉隆晶振 | RH100 | 12 MHz | ±20ppm | ±20ppm |
| RH100-24.000-18-2030-EXT-TR | Raltron拉隆晶振 | RH100 | 24 MHz | ±30ppm | ±20ppm |
| RH100-12.000-12-1010-EXT-TR | Raltron拉隆晶振 | RH100 | 12 MHz | ±10ppm | ±10ppm |
| RH100-12.000-9-1015-TR-NS1 | Raltron拉隆晶振 | RH100 | 12 MHz | ±15ppm | ±10ppm |
| RH100-25.000-16-F-2020-EXT-TR | Raltron拉隆晶振 | RH100 | 25 MHz | ±20ppm | ±20ppm |
| RH100-24.000-8-1010-EXT-TR | Raltron拉隆晶振 | RH100 | 24 MHz | ±10ppm | ±10ppm |
| RH100-25.000-18-F-1010-TR | Raltron拉隆晶振 | RH100 | 25 MHz | ±10ppm | ±10ppm |
| RH100-16.000-8-1010-TR | Raltron拉隆晶振 | RH100 | 16 MHz | ±10ppm | ±10ppm |
| RH100-25.000-10-F-1010-EXT-TR | Raltron拉隆晶振 | RH100 | 25 MHz | ±10ppm | ±10ppm |
| R2520-32.000-8-F-1030-EXT-TR | Raltron拉隆晶振 | R2520 | 32 MHz | ±30ppm | ±10ppm |
| AS-3.579545-18 | Raltron拉隆晶振 | AS | 3.579545 MHz | ±50ppm | ±30ppm |
| AS-4.000-18 | Raltron拉隆晶振 | AS | 4 MHz | ±50ppm | ±30ppm |
| AS-20.000-20 | Raltron拉隆晶振 | AS | 20 MHz | ±50ppm | ±30ppm |
| AS-11.0592-18-EXT | Raltron拉隆晶振 | AS | 11.0592 MHz | ±50ppm | ±30ppm |
| AS-16.000-20-EXT | Raltron拉隆晶振 | AS | 16 MHz | ±50ppm | ±30ppm |
| AS-27.000-20-F | Raltron拉隆晶振 | AS | 27 MHz | ±50ppm | ±30ppm |
| AS-25.000-18-F-EXT | Raltron拉隆晶振 | AS | 25 MHz | ±50ppm | ±30ppm |
| R2520-12.000-8-1030-EXT-TR | Raltron拉隆晶振 | R2520 | 12 MHz | ±30ppm | ±10ppm |
| RT3215-32.768-9-TR | Raltron拉隆晶振 | RT3215 | 32.768 kHz | - | ±20ppm |
| RSM200S-32.768-6-TR | Raltron拉隆晶振 | RSM200S | 32.768 kHz | - | ±20ppm |
| H130B-16.000-18-3030-EXT-TR | Raltron拉隆晶振 | H130B | 16 MHz | ±30ppm | ±30ppm |
| H130B-12.000-18-3030-TR | Raltron拉隆晶振 | H130B | 12 MHz | ±30ppm | ±30ppm |
| H130B-24.000-18-3030-EXT-TR | Raltron拉隆晶振 | H130B | 24 MHz | ±30ppm | ±30ppm |
| RSE-32.768-12.5-H14-TR | Raltron拉隆晶振 | RSE H14 | 32.768 kHz | - | ±50ppm |
| RH100-8.000-10-1010-EXT-TR | Raltron拉隆晶振 | RH100 | 8 MHz | ±10ppm | ±10ppm |
| H130A-8.000-8-2030-TR | Raltron拉隆晶振 | H130A | 8 MHz | ±30ppm | ±20ppm |
| RH100-8.000-8-2020-TR | Raltron拉隆晶振 | RH100 | 8 MHz | ±20ppm | ±20ppm |
| RT2012-32.768-6-TR | Raltron拉隆晶振 | RT2012 | 32.768 kHz | - | ±50ppm |
| RH100-8.000-16-3030-TR-NS1 | Raltron拉隆晶振 | RH100 | 8 MHz | ±30ppm | ±30ppm |
| H13-8.000-18-3030-EXT-TR | Raltron拉隆晶振 | H13 | 8 MHz | ±30ppm | ±30ppm |
| AS-4.9152-18-EXT-SMD-TR | Raltron拉隆晶振 | AS-SMD | 4.9152 MHz | ±50ppm | ±30ppm |
| AS-10.000-20-3030-SMD-TR | Raltron拉隆晶振 | AS-SMD | 10 MHz | ±30ppm | ±30ppm |
| AS-30.000-10-F-2020-EXT-SMD-TR | Raltron拉隆晶振 | AS-SMD | 30 MHz | ±20ppm | ±20ppm |
| AS-4.000-18-SMD-TR | Raltron拉隆晶振 | AS-SMD | 4 MHz | ±50ppm | ±30ppm |
| AS-3.579545-18-SMD-TR | Raltron拉隆晶振 | AS-SMD | 3.579545 MHz | ±50ppm | ±30ppm |
| AS-13.560-20-SMD-TR | Raltron拉隆晶振 | AS-SMD | 13.56 MHz | ±50ppm | ±30ppm |
| AS-20.000-16-SMD-TR | Raltron拉隆晶振 | AS-SMD | 20 MHz | ±50ppm | ±30ppm |
| AS-7.3728-20-EXT-SMD-TR | Raltron拉隆晶振 | AS-SMD | 7.3728 MHz | ±50ppm | ±30ppm |
| AS-7.3728-18-SMD-TR | Raltron拉隆晶振 | AS-SMD | 7.3728 MHz | ±50ppm | ±30ppm |
| RH100-13.560-10-1020-EXT-TR | Raltron拉隆晶振 | RH100 | 13.56 MHz | ±20ppm | ±10ppm |
| RH100-26.000-18-F-2030-EXT-TR | Raltron拉隆晶振 | RH100 | 26 MHz | ±30ppm | ±20ppm |
| RH100-24.000-9-1010-TR | Raltron拉隆晶振 | RH100 | 24 MHz | ±10ppm | ±10ppm |
| RH100-24.000-8-1530-EXT-TR | Raltron拉隆晶振 | RH100 | 24 MHz | ±30ppm | ±15ppm |
| RH100-10.000-10-5050-TR | Raltron拉隆晶振 | RH100 | 10 MHz | ±50ppm | ±50ppm |
| RH100-10.000-8-2020-TR | Raltron拉隆晶振 | RH100 | 10 MHz | ±20ppm | ±20ppm |
| RH100-24.000-20-3050-EXT-TR | Raltron拉隆晶振 | RH100 | 24 MHz | ±50ppm | ±30ppm |
| RH100-32.000-12-F-3030-TR | Raltron拉隆晶振 | RH100 | 32 MHz | ±30ppm | ±30ppm |
| RH100-50.000-12-F-1010-TR | Raltron拉隆晶振 | RH100 | 50 MHz | ±10ppm | ±10ppm |
| RH100-50.000-10-F-1015-EXT-TR | Raltron拉隆晶振 | RH100 | 50 MHz | ±15ppm | ±10ppm |
| RH100-16.000-9-1010-TR | Raltron拉隆晶振 | RH100 | 16 MHz | ±10ppm | ±10ppm |
| RH100-25.000-6-F-1010-TR | Raltron拉隆晶振 | RH100 | 25 MHz | ±10ppm | ±10ppm |
| RH100-25.000-8-F-1010-TR | Raltron拉隆晶振 | RH100 | 25 MHz | ±10ppm | ±10ppm |
| RH100-26.000-12-F-1010-EXT-TR | Raltron拉隆晶振 | RH100 | 26 MHz | ±10ppm | ±10ppm |
| RH100-32.000-10-F-1010-TR | Raltron拉隆晶振 | RH100 | 32 MHz | ±10ppm | ±10ppm |
| AS-8.000-20-SMD-TR | Raltron拉隆晶振 | AS-SMD | 8 MHz | ±50ppm | ±30ppm |
| R2520-32.000-10-F-1010-TR-B1B | Raltron拉隆晶振 | R2520 | 32 MHz | ±10ppm | ±10ppm |
| AS-18.432-20 | Raltron拉隆晶振 | AS | 18.432 MHz | ±50ppm | ±30ppm |
| R2520-24.000-10-1010-TR-NS4 | Raltron拉隆晶振 | R2520 | 24 MHz | ±10ppm | ±10ppm |
| RT3215-32.768-7-TR | Raltron拉隆晶振 | RT3215 | 32.768 kHz | - | ±20ppm |
