欧美晶振

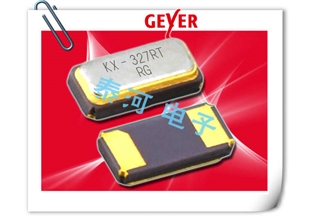

- 产品型号：87941502
- 晶振频率：32.768KHz
- 晶振尺寸：2.0*1.2*0.6mm
- 产品应用： Geyer晶振,KX-327RT进口晶振,音叉晶体,12.87161晶振,无源晶振,2012mm晶振,石英晶体谐振器,二脚贴片晶振,SMD晶振,频率32.768KHz,负载12.5pF,频率容差5ppm,工作温度-40~85°C,高精度晶振,高品质晶振,低老化晶振,消费电子...
-
12.87161|32.768KHz|12.5pF|Geyer高精度晶振
12.87161|32.768KHz|12.5pF|Geyer高精度晶振,Geyer晶振,KX-327RT进口晶振,音叉晶体,12.87161晶振,无源晶振,2012mm晶振,石英晶体谐振器,二脚贴片晶振,SMD晶振,频率32.768KHz,负载12.5pF,频率容差5ppm,工作温度-40~85°C,高精度晶振,高品质晶振,低老化晶振,消费电子产品晶振,数码相机晶振,随身听晶振,智能家居晶振.
12.87161|32.768KHz|12.5pF|Geyer高精度晶振规格表
| part no. | 12.87161 |
| model | KX-327RT |
| frequency | 32.768 kHz |
| operating temperature | -40~+85℃ |
| frequency tolerance(df/F) at +25°C ±3°C | 土5ppm |
| temperature tolerance (parabolic coefficient) |
( -0.036 ±10 % ) × 10-6 / ℃2
|
| turnover temperature | +25°C±5℃ |
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 12.5pF |
| motional capacitance (C1) Typ. | 6fF |
| shunt capacitance C0 typ. | 1.3 pF |
| series resistance R1 (ESR) max. | 70 KOhm |
| aging at +25°℃ (first year) max. | ±3 ppm |
| drive level | 0.1 μW typ. |
| contents of reel | 3000 pcs. |
.jpg)
12.87161|32.768KHz|12.5pF|Geyer高精度晶振尺寸图
