欧美晶振
- 产品型号：75792326
- 晶振频率：32.768KHz
- 晶振尺寸：2.0*1.2*0.6mm
- 产品应用： 欧美进口晶振,格耶晶振,KX-327RT石英晶振,12.87160晶振,无源晶振,石英晶体谐振器,贴片晶振,SMD晶振,2012mm晶振,频率32.768KHz,负载12.5pF,频率容差20ppm,工作温度-40~85°C,超小型晶振,高可靠性晶振,无铅环保晶振,可穿...
-

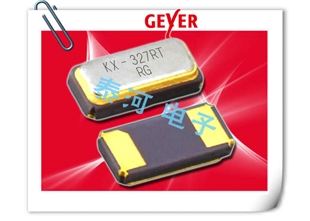

12.87160|32.768KHz|12.5pF|格耶石英晶振
12.87160|32.768KHz|12.5pF|格耶石英晶振,欧美进口晶振,格耶晶振,KX-327RT石英晶振,12.87160晶振,无源晶振,石英晶体谐振器,贴片晶振,SMD晶振,2012mm晶振,频率32.768KHz,负载12.5pF,频率容差20ppm,工作温度-40~85°C,超小型晶振,高可靠性晶振,无铅环保晶振,可穿戴设备晶振,物联网晶振,通讯设备晶振,音频系统晶振.
12.87160|32.768KHz|12.5pF|格耶石英晶振规格表
| part no. | 12.87160 |
| model | KX-327RT |
| frequency | 32.768 kHz |
| operating temperature | -40~+85℃ |
| frequency tolerance(df/F) at +25°C ±3°C | 土20ppm |
| temperature tolerance (parabolic coefficient) |
( -0.036 ±10 % ) × 10-6 / ℃2
|
| turnover temperature | +25°C±5℃ |
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 12.5pF |
| motional capacitance (C1) Typ. | 6fF |
| shunt capacitance C0 typ. | 1.3 pF |
| series resistance R1 (ESR) max. | 70 KOhm |
| aging at +25°℃ (first year) max. | ±3 ppm |
| drive level | 0.1 μW typ. |
| contents of reel | 3000 pcs. |
.jpg)
12.87160|32.768KHz|12.5pF|格耶石英晶振尺寸图
