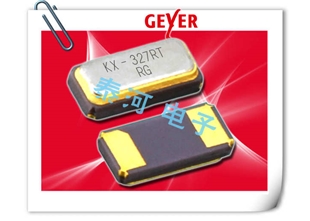

欧美晶振
- 产品型号：19876301
- 晶振频率：32.768KHz
- 晶振尺寸：3.2*1.5*0.9mm
- 产品应用： 欧美晶振,Geyer晶振,KX-327NHT音叉晶振,12.87145晶振,无源晶振,石英晶体谐振器,3215mm晶振,二脚贴片晶振,频率32.768KHz,负载12.5pF,频率容差20ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,低老化晶振,移动电话晶...
-
12.87145|32.768KHz|12.5pF|Geyer音叉晶振
12.87145|32.768KHz|12.5pF|Geyer音叉晶振,欧美晶振,Geyer晶振,KX-327NHT音叉晶振,12.87145晶振,无源晶振,石英晶体谐振器,3215mm晶振,二脚贴片晶振,频率32.768KHz,负载12.5pF,频率容差20ppm,工作温度-40~85°C,高稳定性晶振,无铅环保晶振,低老化晶振,移动电话晶振,寻呼机晶振,时钟钟表晶振,物联网晶振.
12.87145|32.768KHz|12.5pF|Geyer音叉晶振规格表
| part no. | 12.87145 |
| model | KX-327NHT |
| frequency | 32.768 kHz |
| operating temperature | -40~+85℃ |
| frequency tolerance(df/F) at +25°C ±3°C | 土20ppm |
| temperature tolerance (parabolic coefficient) |
( -0.035 ±10 % ) × 10-6 / ℃2
|
| turnover temperature | +25°C±5℃ |
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 12.5pF |
| motional capacitance (C1) Typ. | 3.6fF |
| shunt capacitance C0 typ. | 1.0 pF |
| series resistance R1 (ESR) max. | 70 KOhm |
| aging at +25°℃ (first year) max. | ±3 ppm |
| drive level | 1 μW max. |
| contents of reel | 3000 pcs. |
.jpg)
12.87145|32.768KHz|12.5pF|Geyer音叉晶振尺寸图
