12.87137|32.768KHz|9.0pF|Geyer晶振,Geyer晶振,格耶晶振,KX-327LT石英谐振器,12.87137晶振,7015mm晶振,贴片石英晶振,水晶振子,频率32.768KHz,负载9.0pF,频率容差20ppm,工作温度-40~85°C,低老化晶振,抗冲击晶振,抗振动晶振,移动无线电晶振,通讯设备晶振,消费电子产品晶振,蓝牙耳机晶振.

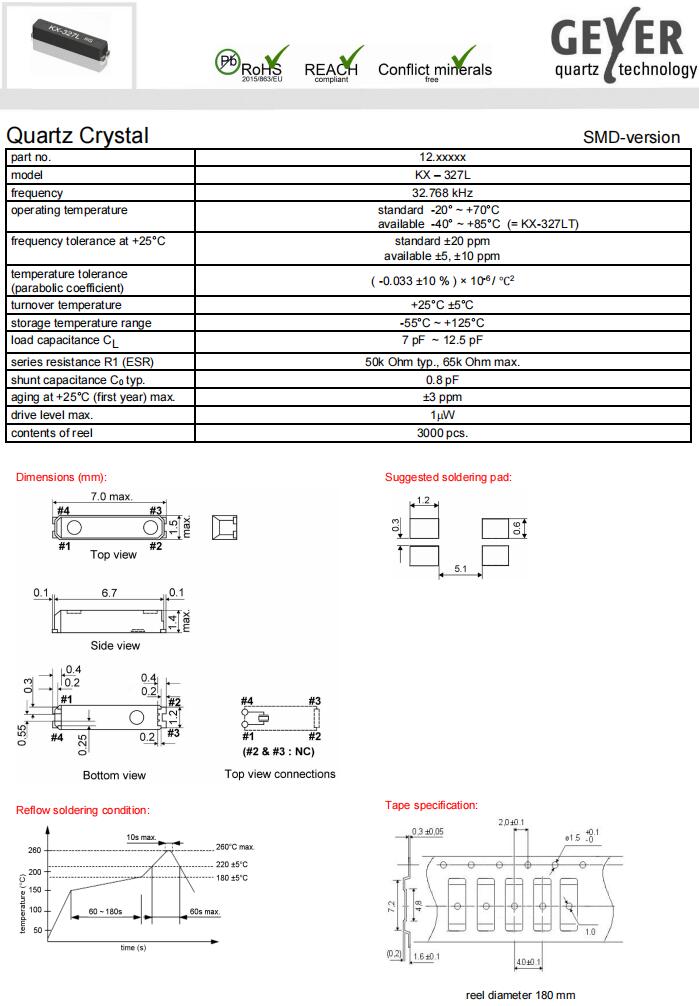

12.87137|32.768KHz|9.0pF|Geyer晶振规格表
part no. | 12.87137 |
model | KX-327LT |
frequency | 32.768 kHz |
operating temperature | -40~+85℃ |
frequency tolerance(df/F) at +25°C ±3°C | 土20ppm |
temperature tolerance (parabolic coefficient) |
( -0.033 ±10 % ) × 10-6 / ℃2
|
turnover temperature | +25°C±5℃ |
storage temperature range | -55°C~+125℃ |
load capacitance CL | 9.0 pF |
shunt capacitance C0 typ. | 0.8 pF |
series resistance R1 (ESR) max. | 65 KOhm |
aging at +25°℃ (first year) max. | ±3 ppm |
drive level | 1 μW max. |
contents of reel | 3000 pcs. |
.jpg)

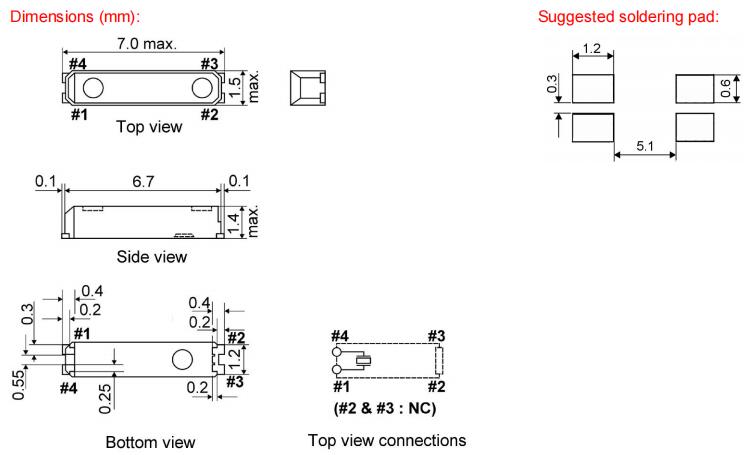

12.87137|32.768KHz|9.0pF|Geyer晶振尺寸图
