欧美晶振
- 产品型号：58357894
- 晶振频率：32.768KHz
- 晶振尺寸：8.0*3.8*2.5mm
- 产品应用： 欧美进口晶振,Geyer晶振,KX-327S无源晶振,石英晶体谐振器,12.87107晶振,8038mm晶振,四脚贴片晶振,SMD晶体,频率32.768KHz,负载12.5pF,频率容差20ppm,工作温度-20~70°C, 低老化晶振,高品质晶振,高可靠性晶振,摄像头晶....
-

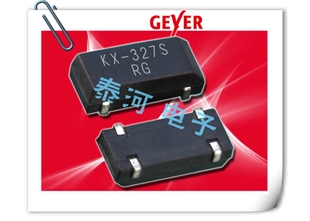

12.87107|32.768KHz|12.5pF|欧美Geyer晶振
12.87107|32.768KHz|12.5pF|欧美Geyer晶振,欧美进口晶振,Geyer晶振,KX-327S无源晶振,石英晶体谐振器,12.87107晶振,8038mm晶振,四脚贴片晶振,SMD晶体,频率32.768KHz,负载12.5pF,频率容差20ppm,工作温度-20~70°C, 低老化晶振,高品质晶振,高可靠性晶振,摄像头晶振,家用电视机顶盒晶振,智能体温计晶振,电子体重秤晶振.
12.87107|32.768KHz|12.5pF|欧美Geyer晶振规格表
| part no. | 12.87107 |
| model | KX-327S |
| frequency | 32.768 kHz |
| operating temperature | -20°~+70℃ |
| frequency tolerance(df/F) at +25°C ±3°C | 土20ppm |
| temperature tolerance (parabolic coefficient) |
-0.034 ±0.006 ppm / °C2 typ., -0.042 ppm / °C2 max
|
| turnover temperature | +25°C±5℃ |
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 12.5 pF |
| motional capacitance( Co) | 0.9 pF |
| series resistance R1 (ESR) max. | 50 KOhm |
| aging at +25°℃ (first year) max. | ±3 ppm |
| drive level | 1 μW max. |
| contents of reel | 3000 pcs. |
.jpg)
12.87107|32.768KHz|12.5pF|欧美Geyer晶振尺寸图
