- 产品型号：74541631
- 晶振频率：6MHz
- 晶振尺寸：
- 产品应用： Geyer Crystal,欧美晶振,KX-49T进口插件晶振,12.81053晶振,HC-49U晶振,石英晶体谐振器,二脚封装晶振,无源晶振,11.3*4.9*13.6mm晶振,频率6MHz,负载30pF,频率容差30ppm,工作温度-40~85°C,低老化晶振,高可靠性晶振,抗冲...
-
12.81053|6MHz|30pF|Geyer Crystal
12.81053|6MHz|30pF|Geyer Crystal,Geyer Crystal,欧美晶振,KX-49T进口插件晶振,12.81053晶振,HC-49U晶振,石英晶体谐振器,二脚封装晶振,无源晶振,11.3*4.9*13.6mm晶振,频率6MHz,负载30pF,频率容差30ppm,工作温度-40~85°C,低老化晶振,高可靠性晶振,抗冲击晶振,移动电话晶振,调制解调器晶振,寻呼机晶振,DVD家电影音系统晶振.
12.81053|6MHz|30pF|Geyer Crystal规格表
| part no. | 12.81053 |
| model | KX-49T |
| frequency range | 6 MHz |
|
mode |
fundamental |
| operating temperature | -40~+85℃ |
| frequency tolerance at +25°C | 土30 ppm |
| temperature tolerance |
土100 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 30 pF |
| shunt capacitance C0 max. | 7 pF |
| series resistance R1 (ESR) max. | 200 Ohm |
| aging at +25°℃ (first year) max. | ±5 ppm |
| drive level | 0.5 ~ 2 mW typ |
.jpg)

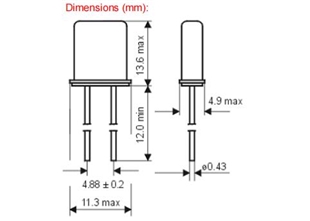

12.81053|6MHz|30pF|Geyer Crystal尺寸图
